16 Channel 1080P Hybrid XVR for AHD/CVI/TVI DVR AHD-H 960H D1 P2P IP recorder ONVIF Network NVR H.264 for 2MP IP Camera

16 Channel 1080P Hybrid XVR for AHD CVI TVI DVR AHD H 960H D1 P2P IP
Click to see details
16 Channel 1080P Hybrid XVR for AHD CVI TVI DVR AHD H 960H D1 P2P IP
80 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 189.00 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


This is 16CH-1080P XVR , supports 5 signal output.

1080P/ 720P AHD/CVI/TVI Camera :

PAL: 1fps-15fps adjustable (each channel)

NTSC: 1fps-15fps adjustable (each channel)

1080P/ 960P/ 720P IP camera:

PAL: 1fps-25fps adjustable (each channel)

NTSC: 1fps-30fps adjustable (each channel)

Total incoming bandwidth less than 100M

960H/ D1 Camera:

PAL: 1fps-25fps adjustable (each channel)

NTSC: 1fps-30fps adjustable (each channel)

Preview Resolution

1080P Camera: 1920*1080

720P: 1280*720

960H: 960*576

Recording Resolution

1080P Camera: 960*1080(15fps/CH)

720P: 1280*720(15fps/CH)

960H: 960*576(25fps/CH)

All our XVRs are tested with VASTSEE IP camera before shipment.

We sugguest to buy IP camera from our store if you want this DVR to be connected with IP camera.

DVR supports onvif protocol.

If you want to connect with other IP cameras, please check with us.

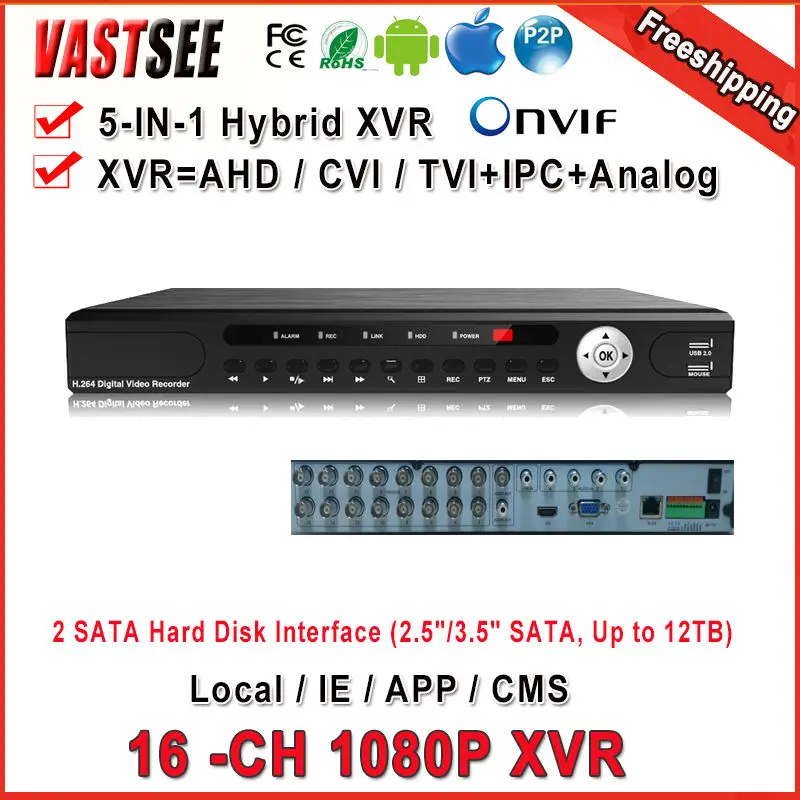

Product pictures: Front side: 8/16-CH: Mouse(USB), Power supply(12V 4A), CD, Manual, Screws Please select the correct power supply specifications. when ordering, we will send power supply according to your country.

Main Processor HI3521A
Operating System Embedded LINUX
Input Anolog: 16*1080N
Anolog+Network: 14*Anolog(1080N)+2*network(Max 8MP), 12*Anolog(1080N)+4*network(Max 8MP), 10*Anolog(1080N)+6*network(Max 8MP), 8*Anolog(1080N)+8*network(Max 8MP), 6*Anolog(1080N)+10*network(Max 8MP), 4*Anolog(1080N)+12*network(Max 8MP), 2*Anolog(1080N)+14*network(Max 8MP)
Network: 16*network(Max 8MP)(Total incoming bandwidth ≤80M)
Input 16CH BNC
Signal Type Anolog/AHD/CVI/TVI 2.0/Network
Output 1 VGA, 1CVBS,1 HDMI
Input 4 Channel, RCA
Two-way Audio NO
Output 1 Channel, RCA
Sensor Input 4 Channel
Output 1 Channel
Motion Detection 16 Channel
Trigger Events Recording, Alarm, Email, Screen tips
Email Alarm Send Pieces to The Designated E-mail
Interface RS485
Protocol Pelco-D, Pelco-P
Baud Rate 110~921600
Address 0~255
VGA Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080
HDMI Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080
Display Split 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking 1 Rectangular Zones (Each camera)
OSD Camera title, Time, Motion detection, Recording
Video Compression H.264
Audio Compression G711A
Resolution Half 1080P(960×1080);720P(1280×720);960H(P:960×576/N:960×480)
Video Quality worst/worse/ordinary/well/best
Record Rate PAL:Half 1080P(960×1080 16*15fps),720P(1280×720 16*15fps), 960H(960×576 16*25fps)
NTSC:Half 1080P(960×1080 16*15fps),720P(1280×720 16*15fps), 960H(960×480 16*30fps)
Record Mode Manual\Timer\Motion Detection
Playback & Backup
Sync Playback Pure Anolog: 4CH [email protected]
Mixture Mode: 4CH [email protected]
Pure network: 4CH [email protected], 2CH 5MP
Remote Playback 4 Channel / 1 Channel
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Fast play, Rewind
Smart Phone Playback 1 channel
Backup Mode USB Device/Network
Interface 1 RJ45 10M/100M/1000M Adaptive Ethernet Interface
DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
Web Browser IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows XP /Windows Vista/Windows 7/Windows 8/Windows 10
Extra Stream D1/CIF(1~15fps)
Smart Phone iPhone, ipad, Android ,Android pad
Hard Disk Driver
Interface Type 2 SATA Interface
Capacity 3.5″ SATA, Up to 12TB
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC Control Support AHD Signal
USB Interface 2 USB 2.0 Interfaces
Power consumption DC 12V ≤10W
Working Environment -10~55℃/10~90%
Dimension (W×D×H) 354*280*50(mm
Weight 2.8kg (Without HDD)

1.Install plug-in (IE8 or above) 2.Select the language, enter the user name password login. The default user name is: admin Password: 12345 1.Add a device :device management/device list/search device/select. 2. Equipment management, View the device address,Ports and other information. 3. Playback the video by the client software. 4.basic configuration,Local video, screenshot path Settings. 5.Set the local recording schedule. 6.Create a group:Different cameras are assigned in one group for easy management.

Packing 16CH: Package contents: 1 * DVR 1*USB Mouse 1 * screws Bag 1*CD 1* 12V 4A Power supply Payment 1.If you have any problems of payment,please contact us! 2.If you need to buy more goods, but the price is not very cheap, or did not find in our store, please contact us! Warranty & Return 1. All products have been checked and packaged in good condition before dispatch. 2. All products have 1 year warranty. 3. if you are not satisfied with our product and service. Please contact us first before giving a non positive feedback or dispute. we will try to our best to solve the problems. Shipping 1. Item will be shipped within 1-3 business days. 2. Delivery Time: —-Via Express: Generally 3-7 working days. —-Via Air Mail: Generally 10-30 working days. 3. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. 4. Buyer responses for (in case) all tax or VAT under any circumstances. Customer Services 1,We guarantee that all our items are “as stated” in their descriptions. We strive for 100% customer satisfaction on every sale we complete. 2. Our products are direct from factory, there is no middle man, no high markup, so we can provide quality items yet very competitive price. 3. If you have any questions please contact us first, most are responded with in 12 business hours. Feedback Your satisfaction and positive feedback is very important to us. PLEASE LEAVE POSITIVE FEEDBACK AND 5 STARS IF YOU ARE SATISFIED WITH OUR ITEMS AND SERVICES. If you have any problems with our items or services, please feel free to contact us firstly before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
