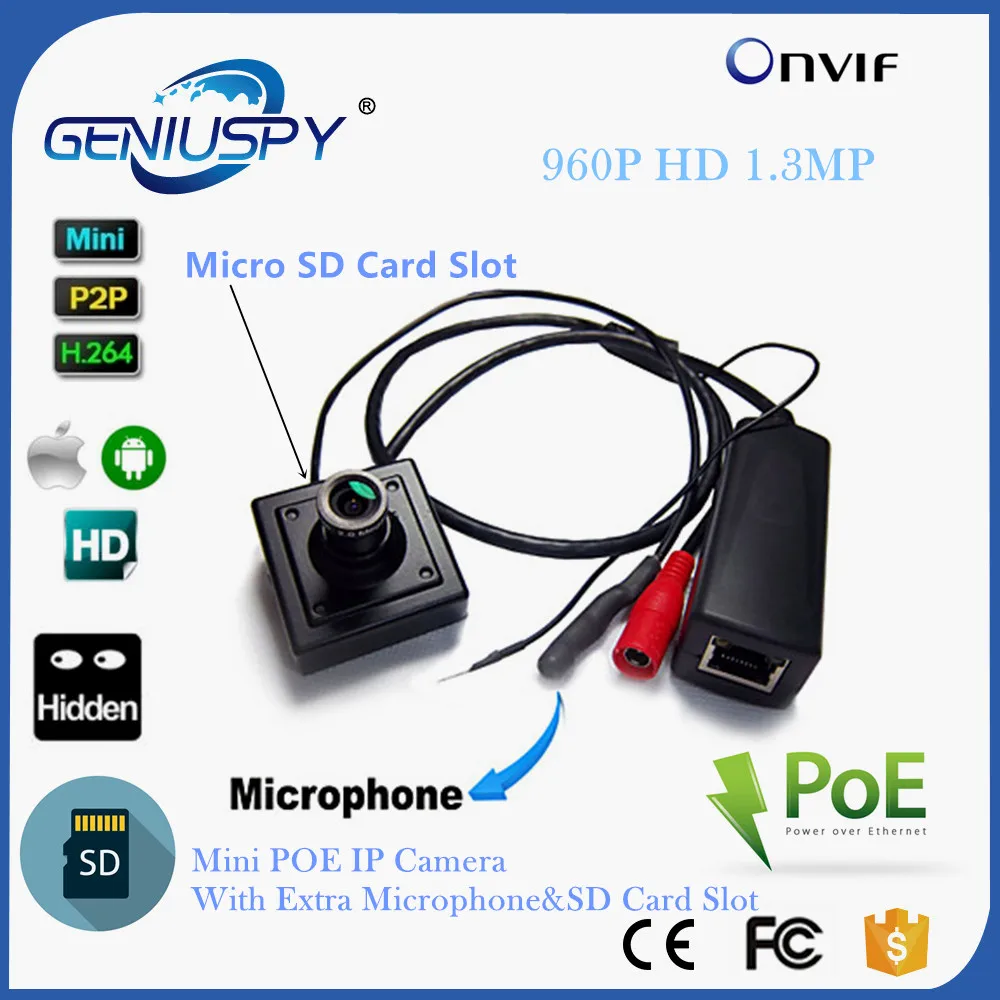

3.6mm Len POE Mini IP Camera 1.3MP 960P CCTV Security Micro Home Smallest Camera Hd SD Card Slot TF Surveillance P2P Onvif Audio

3 6mm Len POE Mini IP Camera 1 3MP 960P CCTV Security Micro Home Smallest Camera
Click to see details
3 6mm Len POE Mini IP Camera 1 3MP 960P CCTV Security Micro Home Smallest Camera
100 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 53.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

3.6mm LensPOE Mini IP Camera 1.3MP 960P CCTV Security Micro Home Smallest Camera Hd SD Card Slot TF Surveillance P2P Onvif Audio

attenation:

Regard TF Card support mini Pinhole ip camera

this models have:1xRJ 45 interface +POE Module ,1x dc12v power , build,1x micro sd card slot .1x small microphone

because of mini tf card ip camera , we have different senor&different resoulation !the cost are different all record effect is very good!

we have below senor ! 1/4″ OV9732 CMOS hi3518E 720P Models:TF240CBPA 1/4 senor 1/3″ AR0130 CMOS hi3518E960P Models:TF240CHBPA1/3 senor this sku just for models:TF240CHBPA orders ! for more products infomation ,pls go to page:http://www.aliexpress.com/store/1034208 if you have other requirement ,welcome contact with us free !

Features:

SD / TF card camera. Its purpose is to store video motion detection alarm.Its general in 15 senconds/video segments.Ordinary video 15 minutes at most/video segments.If you want to record a video all day .

Recommended to choose NVR storage.

Features

High sensitivity, high signal-to-noise CMOS image sensor

H.264 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system

Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on

Support :ONVIF 2.0

Support :DDNS and three DDNS

Support :sending email, attaching picture

Support :Alarm picture and record Uploaded to FTP server

Support :Timing captured picture to FTP server

Support :Static IP and DHCP

Support :P2P

Support :privacy mask

Support up to 12 users browsing at the same time(Each stream supports four users

Support remote alarm linkage

Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting

Main Features:

H.264 Main Profile level

1.0/1.3 Megapixel 1280*720 /1280*960P Resolution Can be optional

Dual H.264 Stream, resolution, frame rate, bit rate adjustable

Onvif Compliant compatible with brand NVR such as Hikvision, dahua,xiongmai

Support plug in & play,

indoor Use for hide ip camera

This IP hide ip camera is one cost effective H.264 1.3 Mega Pixel IP camera, which HI3518E chipset, adopts H.264 Main Profile @ Level3 compression technology. Meanwhile it uses 1/4″ inch progressive CMOS sensor, plus with 1.3 megapixel lens, ensure its high quality image.size is 40X40MM

H.264 Main Profile

1.3 Megapixel 1280*960p Resolution
Dual H.264 Stream, resolution, frame rate, bit rate adjustable

support Onvif Version: 2.0

Technical Specifications

Specifications

1.MP720P(TF240CBPA)

1.3MP 960P(TF240CHBPA)

System Structure

Embedded RTOS,dual-core 32bit DSP(Hi3518E),pure hard compression,watchdog

Image sensor size+dsp

1/4″ OV9732 low lux CMOS senor HI 3518E+OV9732

1/3″ AR0130 Ultra-low-illumination

CMOS sensor Hi 3518E+AR0130

Min illumination

Color 0.1Lux F1.2;

B/W 0.1 Lux F1.2;

Color 0.1Lux F1.2;

B/W 0.01 Lux F1.2;

Video Processing

H.264,support dual-stream,AVI; 0.1M~6Mpbs variable; 1~30f/s variable;

Image output

Main stream:1280*720;

Sub-stream:704*576;720P VGA,QVGA

Main stream:1280*9601280*720;

Sub-stream:704*576;960P,VGA,QVGA

Audio interface

1ch intput,level 2Vp-p, impedance 1kΩ, support sound pick-up input;1ch output,level 16Ω,30mw,support earphones or amplifier;

Audio Processing

G.711, support bidrectional talk,audio&video synchronization;

Network interface

1*RJ45,10/100M;support TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, TELNETect.
etc.;

photo resistance

A photo resistance interface, support photo resistance input signal and image,IR-CUT, infrared light linkage;

support

support micro sd card slot storage &Small microphone audio function&POE FUNCTION

Intelligent

analysis

Standard intelligent video analysis functions

Service functions

Support WEB,OSD,live video transmission,support motion detection and IO alarm center reminders as well as screen pop-up linkage; JPEG capture;unified client remote monitoring software,Hip2p

ONVIF

Support onvif 2.0 version

Mobile monitoring

Support mobile monitoring(iPhone,,Android) by app camhi

Power

DC12V power input interface

size

40*40*15mm

Structures

Support POE power supply

Package Include:

1 x Mini IP Camera models:TF240CHBPA 1 x Bracket 1x instruation Note: Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !

If the buyer want other size lens please ‘Leave Message to Seller’ to notify us when bidding.

Simple Instruation:

To Customers :

Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !

we will replyed you within 24hours!!!

Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whether it is available for the camera !
