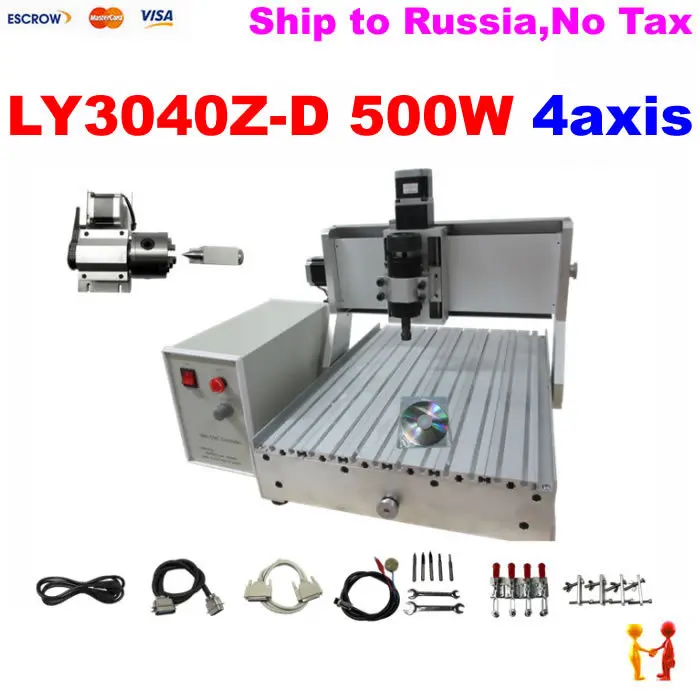

Russia no Ship & Tax! 3D woodworking machine 4 axis cnc 3040 Z-D 500W spindle with ball screw mini cnc milling machine

kindly reminder:

The machine already assembled & tested well, can directly use after take them out from package.

Introduction:

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

In addition, it can be upgraded to be installed a rotational axis.

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

1 year machine part and 6 months electrical parts stepping motor spindle Free Warranty

Shipping by DHL FEDEX UPS with tracking number

Technical Parameters LY CNC 3040 Z-D 500W 3axis engraving machine parameters:

Machine Dimensions

600X510X480mm

Rack material

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area

400X300mm

Z-Axis Stroke

80mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness

≤80mm

Rail type

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw

Ball screw 1605, Pitch 4mm

Spindle motor

500W/11000r/min (Very small noise)

Collet type

ER11,1/8″(3.175mm) Collet

Stepper motor and drive

two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.

Maximum operating speed

4000mm/min (Engraving speed :300-3000mm/min)

Repeat positioning Accuracy

0.03mm

Communication interface

Parallel port

Software Compatability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Machine weight

45kg

Rotation Axis (4th Axis)

Description:

Chuck Size: 80mm self-centering chuck

Center height: H = 49mm

Clamping diameter: 80mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 3:1

Stepper motor: 57 type / 2A two phase 4 line

Positioning accuracy: 0.075 °

Packing list:

1× Engraving machine

1× Control box

1× Power cable

1× control line

1× Parallel port cable 25pin

1× Tool package (include tools 5 pcs, wrench 2pcs, clamp 4pcs)

1× tool auto-checking instrument

1× Rotation axis

1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)

Working samples :
