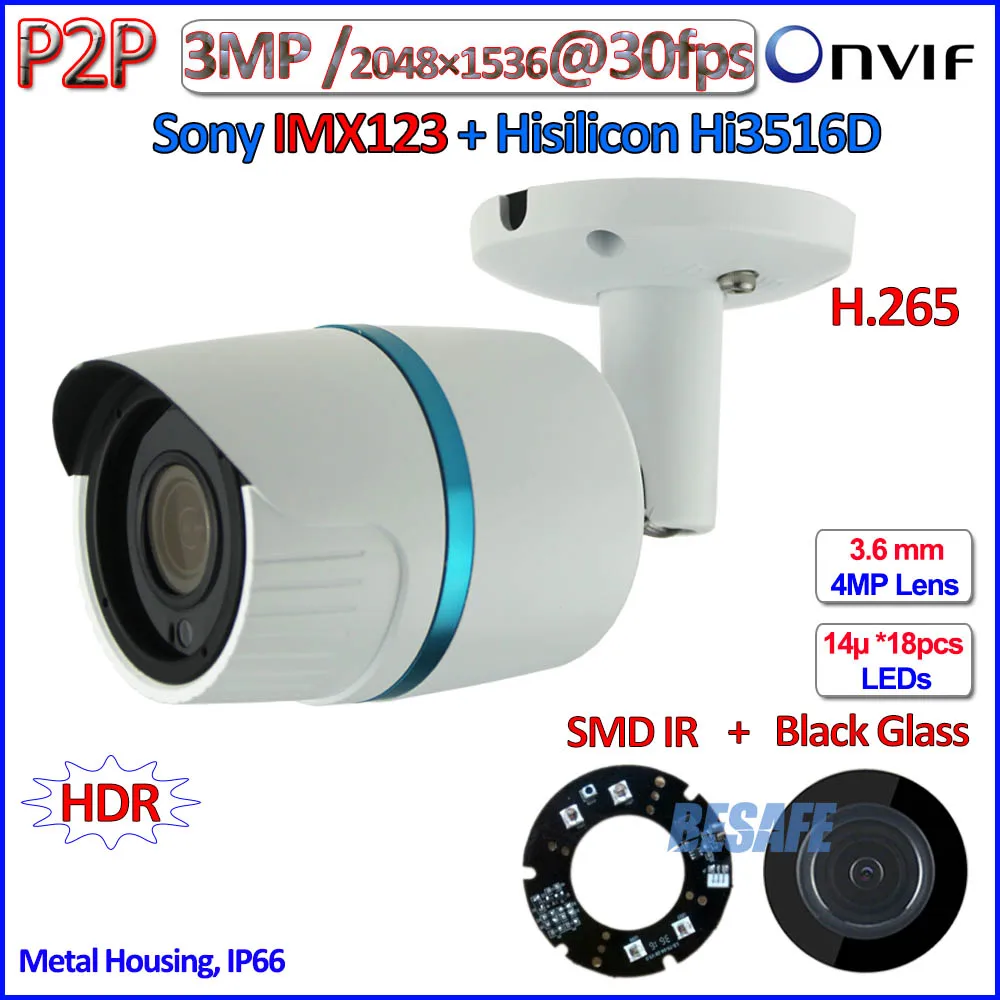

H.265 Hi3516D 3MP ip camera outdoor 2.0MP WDR camara ip POE 1080P IMX123 Sensor Security P2P SMD IR LED ONVIF 2.4, 3.6mm HD Lens
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
Dear friend, Now this IP camera will support Firefox, Safari, Chrome(lower then version 45), IE8-IE11 in Windows system and Mac OCX after updated to new GUI, please check below picture. Besides, Do NOT support Chrome(higher than version 45) and Edge browser of Windows 10 Login in Firefox Login in Safari Login in Chrome
|Solution||1/2.8″ SONY IMX123 + Hisilicon Hi3516D|
|Description||H.265 3.0MP IP camera|
|S/N Ratio||more than 50db|
|Lens||4MP HD 3.6mm Lens / F2.0|
|Special function||WDR (Wide Dynamic Range)|
|IR||SMD IR LED 14miu * 18 pcs, 20Meter range|
|Video Compression||H.265 H.264/JPEG|
|Frame Rate(3.0MP)|| 50Hz:25fps(3MP, 2MP, 720P)
60Hz:30fps(3MP, 2MP, 720P)
|Image setting||Brightness, contrast, saturation, sharpness|
|Storage function||FTP, Local, NVR, SMTP|
|Intelligent alarm||Motion detection, Privacy|
|Protocol||TCP/IP, HTTP, DHCP, FTP, DNS, DDNS, RTSP, NTP, SMTP|
|Communication interface||RJ45 (10M/100M) Adaptive Ethernet port|
|Temperature||-20 – +55 degree|
|Power||DC12V (Not included) / PoE(802.3af) is optional|
|Language||17 kind (English, Russian, Espanol, Portuguese, French….….)|
|compatibility||Hikvision,Dahua and other NVR which support onvif|
|Moblie support||iPhone and Android|
|default IP address||192.168.1.168|
Sensor intruduction—-Sony IMX123LQT
Diagonal 6.46 mm (Type 1/2.8) 3.21M-Effective Pixel Color CMOS Image Sensor
Back-Illuminated CMOS Image Sensor with Newly Developed Pixel for Industrial Applications Sony developed approximately 3.21M-effective pixel back-illuminated CMOS image sensor, “IMX123LQT”, achieved full HD output support, and improved low light performance for industrial applications.
* STARVIS is a trademark of Sony Corporation.
The STARVIS is back-illuminated pixel technology used in CMOS image sensors for surveillance camera applications.
Newly Developed High Sensitivity Pixel
Low Light Performance
How to connect IP camera?
Cable Connecting(IP66 design):
After connecting our IP Camera to your computer or Router or interchanger, and make sure it has power on.
1. Get software “IP Search.exe” from CD disk and install it
2.Click “search” button, you can see IP camera shown with default ip address(192.168.1.168)
3. then change ip address according to your network segment
4. Finally click button “modify IP”, after some seconds click again “search” button and you will have IP camera with new IP address.
Please check below pictures.
IE login(or via Firefox, Safari, Chrome)
1. open your browser and Enter URL : 192.168.1.168(or IP address you change finally)
2. if first time login, you need to download an OCX activeX
3. download and install this OCX, refresh website then you will see below login interface.
4. choose your language then enter user name and password, both are “admin”(default)
Motion detection setting
when you want to set motion detection, you need to tick where shown in red in below photos.
choose sensitivity of motion detection, can choose from 0 to 10
if you do not want some areas shown, you can choose up to 3 areas on “privacy”
then you can set up SMTP server or FTP server when motion detection recording
you can adjust image of camera, IR-cut Mode, white balance….
Most important is–This camera has WDR function.
If you want to watch video from your mobile phone(Android or Iphone), you need to set camera in below picture
Computer Client Software CMS
Find “HeroSpeedCMS.exe” from CD and install it
choose your language,
if first time login, you need to register
Search Add Device
1. open CMS software, click “Search Device” to search for device in LAN, or add device manually.
2. add device manually
BEsafe CMS introduction
BEsafe P2P Mobile phone function
1. download “freeip” app from app store or scan QR code from IE interface
2, 3. user register
4. add device
5-1. scan QR code from IE interface 5-2. input serial number manually
P2P real shooting from mobile phone
A: photo of stream one
B: photo of stream two
C, D: stream one and stream two of night vision
E, F: recording and playing back by mible phone
1. if you more insteresting about image and resolution of our IP camera, please check below real shooting from IE interface.
Please note that below photos are changed from 2048*1536 to 1000*750
2. You can contact us for full resolution pictures or videos.
ourdoor night vision
indoor night vision
Where is this camera produced?—-We are factory!
|1 * camera|
|1 * manual|
|1 * screws|
1 * CD
1.We will send the goods within 5-7 working days after your payment is verify by Aliexpress.
2.Our free shipping only included China post air mail ,and the weight should be within 2KG. Please notice the China post air mail are slowly.
3.If you want to send by EMS.DHL and UPS, you should pay for the shipping cost.
4.When we send the goods , we will responsible for the problem in China Customs ,and the buyer should responsible for the problem in buyer’s country Customs.
5.You will trace the goods online after sending the goods 1-2 working days.
6.Please check your goods with shipping company face to face when you receive the goods.
7.If you find the camera is lost or damaged on the way. Please let the shipping company give you the prove. Then we will help you let the shipping company compensate you.
1. All merchandise we sell are in good quality and under strict examination before they are shipped. We will try our best to avoid any quality problem.
2. We promise warranty for quality in one year and we will repair it free of charge. The returning shipping should be paid by customer.
3. Your satisfaction of our products is guarantee. If you are not satisfied with the product, you may return the goods for exchange but please communicate with us before return. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.
4. All return items must be in good condition. They must be under resalable condition. Men-made defects are not guaranteed, such as broken, scratched and so on.
