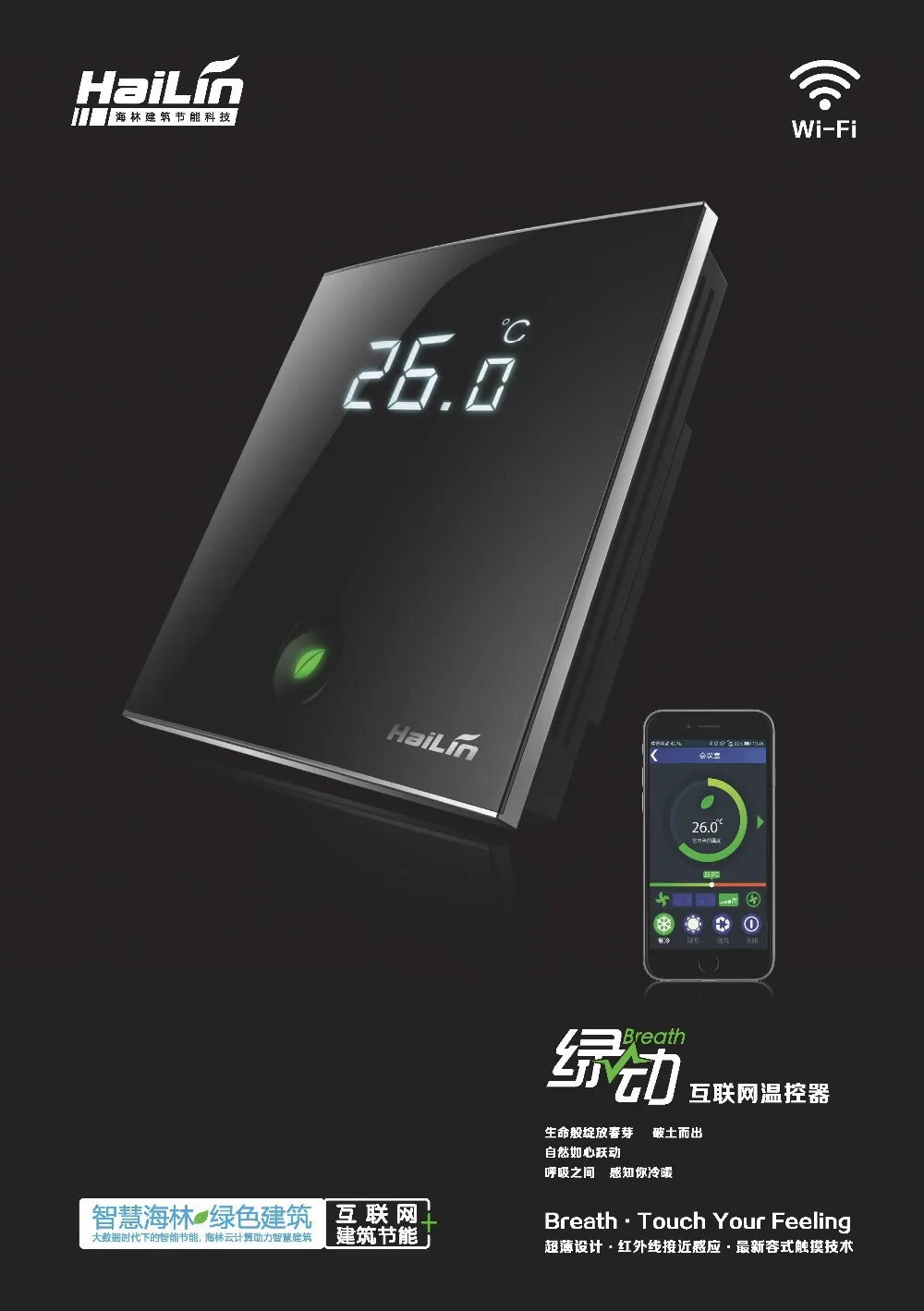

Wifi touch-screen LCD thermostat for water floor heating with English Version App on android and IOS phones
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
- Model: Breath
- Types: Thermostat of water floor heating
- Operating Voltage: AC85 ~ 260V, 50 / 60HZ
- Overcurrent: 1A
- Operating temperature: 0-40 oC
- Life: 10 million (times)
- Certified product: CE
- Temperature Display: Fahrenheit or Celsius Degree
Life —– lives.
“Green” is more concerned about people’s feelings, completely out of the industrial cold, isolated feature, which features live the life of the body and people have a more intimate and true interactive experience.
Being — waiting.
Because of your presence “green movement” into the latest infrared sensor technology to automatically detect the body close, with your arrival automatically.
Breath — breathing.
As you breathe and the “Green”, the quietly waiting reflecting the atmosphere does not bother you, but I remind you, to let you know that “voluntary action energy” on the side.
Touch — touch.
Your touch and by the “green movement”, using the latest technology capacitive touch buttons, release your finger to maximize free space, easy functions.
Easy — simple.
Because of your simple “green movement”, this is the beginning of all emotion, you can easily through a button touch adjust the indoor temperature to achieve comfort and energy saving.
Black — black.
The early life of black, noble, elegant and mysterious, highlighting the natural qualities.
Green — Green.
Budding life, with a fresh and clean energy.
Temperature-sensitive element: NTC
Temperature accuracy: 1
Temperature display accuracy: 0.5
Temperature Settings: 5 ~ 35
The display range: 0 ~ 55
Working environment: 0 ~ 45
Humidity: 5 ~ 95% RH (non-condensing)
Press the button: capacitive touch buttons
Since power consumption: <2 W
Supply voltage: AC85 ~ 260V, 50 / 60HZ (green move DA2 / DB2 / FCV2)
DC12V (green movement DA2 / DB2 / FCV2-MD)
Terminal: to connect 2 × 1.5mm or 1 × 2.5 mm wire
Load current: 2 A (resistive load), 1 A (inductive load)
Installation Box Hole Distancel: 60mm (standard)
The outer shell: PC + ABS flame retardant
Protection class: IP 30
- Unit Type: piece
- Package Weight: 0.600kg
- Package Size: 86cm x 86cm x 15.8cm (width x height x thickness)
If you need more information such as catalogue ,operation manual, wifi installation software or APP download process, wiring diagram etc, please leave a message or send email to me.
Step1. Connect Phone to WiFi
Connect your phone to your WiFi network at home(Choose the one with best signal sending capability)
Step2. Download and Install APP Use your phone to scan the two-dimension code as below, and then download&install the APP scan this two-dimension code, and then install Hailin APP Note: After receiving your order, we will send you the APP by email, so you can install it directly and downloading from the intrnet is not necessary.
Step3. Register and Login-in
Open Hailin App, register your ID, activate your acount and Login-in
Step 4. Connect Thermostat to WiFi
1. Press icon and icon at the same time, and then icon start to twinkle which means the thermostat enter s the configuration status. 2. Use your phone to search for wireless signal, if you find “WiFly-ZEX-XX”, please click it for connection. 3. Open Browser, and input” 192.168.1.1″ (If failed, pls input 18.104.22.168) 4. Click” “Refresh List”, and choose the wifi net 5. Input Passwod in ” Passphrase” , and then click”Save&Reboot”, and finally click the confirmation button. Step 5 Add/Manage Device 1) Press “+” button, enter the device adding status 2) Scan the two-dimension code (QR code) in the package box, and press the “add” button 3) You can see the device is already on the list Note: when you receive the package, please take care of your package box, becasue there is two-dimension code on the box. You need to scan it with your phone. Step 6 Real Time Display and Control 1) you can click the thermostat in the device list and then temperature and other operation data will display in your phone screen 2) you can also control the thermostat with functions such as: adjusting temperature, turn on/off the unit. Note: When we delivery our product, the catalogue, operation manual and APP installation software will also be send by email. If you have any questions or more information, please leave a message to me USD 85.00/pieceUSD 110.00/pieceUSD 90.00/pieceUSD 1.50/pieceUSD 40.00/piece
